무게  193g  314g
 브레이크

 6볼트 디스크

 스포크홀  32  32

 특징

 - 72 인게이먼트 포인트: 반응각 5도의 빠른 반응성
 - 6파울 36T 듀얼 인게이지먼트
: 뛰어난 내구성

 - 구형: 앞  5x100mm , 뒤 5x135mm 전용
 - 신형: 앞 5x100mm / 15x100mm , 뒤 5x135mm / 12x142mm 변환 지원

 씰드 베어링

 구형 - 6902 2RS: 2개
 신형 - 17287 2RS: 2개

 허브쉘 - 6902 2RS: 2개
 프리허브 바디 - 15267 2RS: 2개 또는
                      15267 2RS: 1개, 6902 2RS: 1개

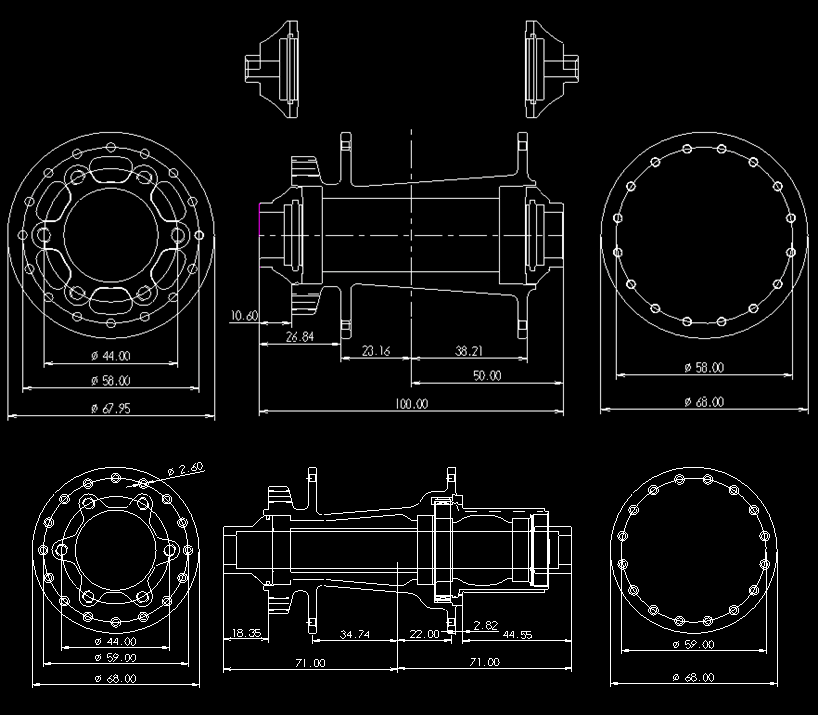

 휠 빌딩 자료





Front

Rear

 Weight  193g  314g
 Brake

 6-bolt disc brake )

 Spoke Hole  32  32

 Features

 - 72 points of engagement : fast response
 -
6 pawls, 36T dual-engagement  : long lifetime

 - Old version:  Front 5x100mm , Rear 5x135mm only
 - New version: Front 5x100mm / 15x100mm , Rear 5x135mm / 12x142mm  conversion end caps available

 Sealed Bearings

 Old version - 6902 2RS: 2 pcs
 New version - 17287 2RS: 2 pcs

 Hub shell - 6902 2RS: 2개
 Freehub body - 15267 2RS: 2pcs or
                      15267 2RS: 1pc, 6902 2RS: 1pc
